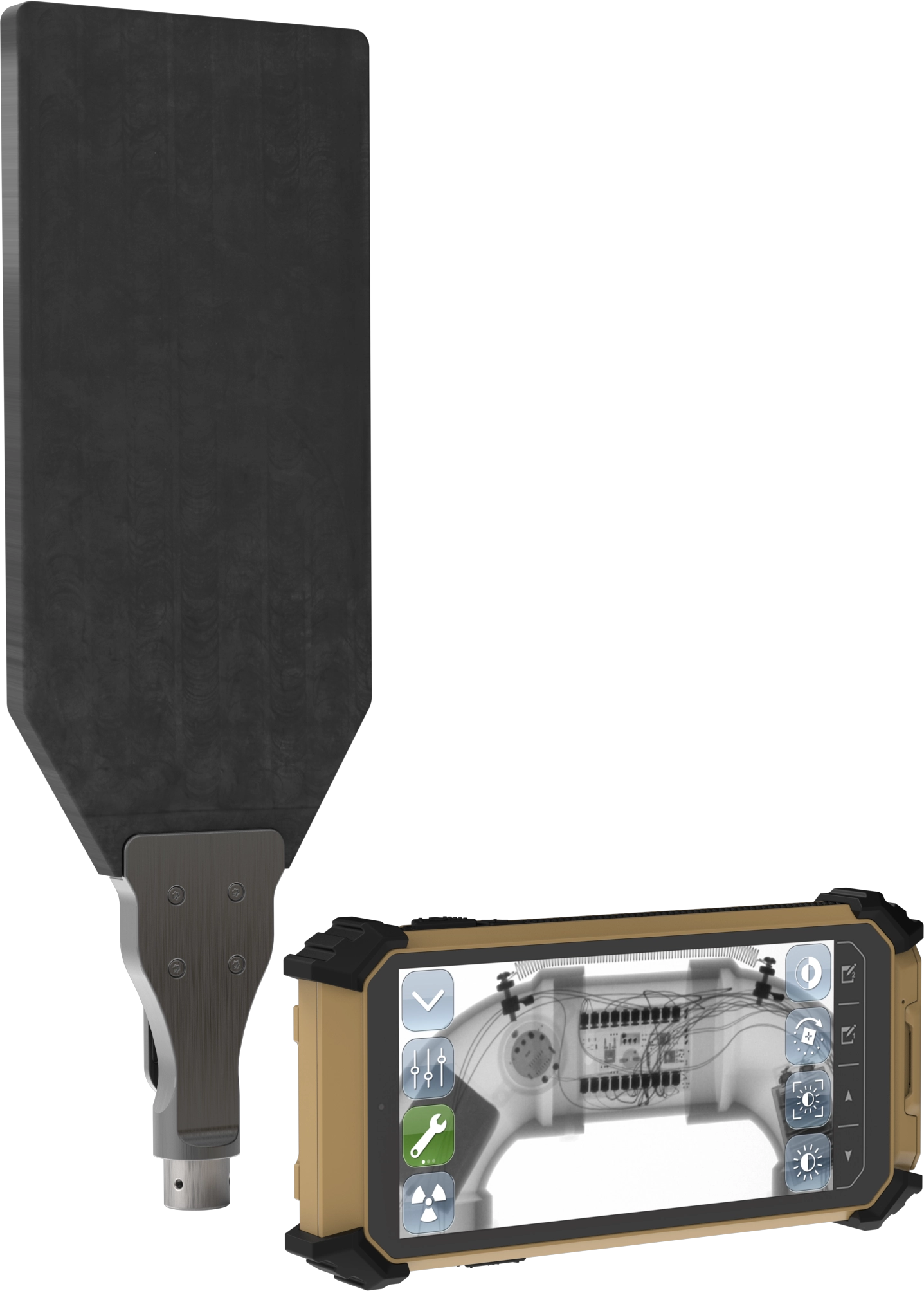

Bomb Tech DR System

Introducing the intuitive ultra-portable tactical digital radiography system designed by Cuattro with Bomb Techs, for Bomb Techs.

Cuattro Micro™ Product Features:

Cuattro Micro™ utilizes a state-of-the-art 14-bit 1510HS CMOS X-ray detector, invented by Cuattro for instant and highly detailed security and tactical imaging from the world’s most compact, light, fit-for-purpose, hardened form factor. Exclusive combination of capabilities include:
  • 100 μm pixel pitch CMOS (low dose/ low noise)
  • Fast single and rapid re with minimal image lag
  • Permanent bonding to bre optic plate (FOP)
  • High Sensitivity and High Dynamic Range modes
  • Flexible region of interest (ROI)
  • Gadox scintillator
  • Automatic Exposure Detection (AED)
  • Secure USB data (out), control, power tethered
  • Detachable handle extension
  • Cuattro Software native and full integration

Cuattro Micro™ Software Features:

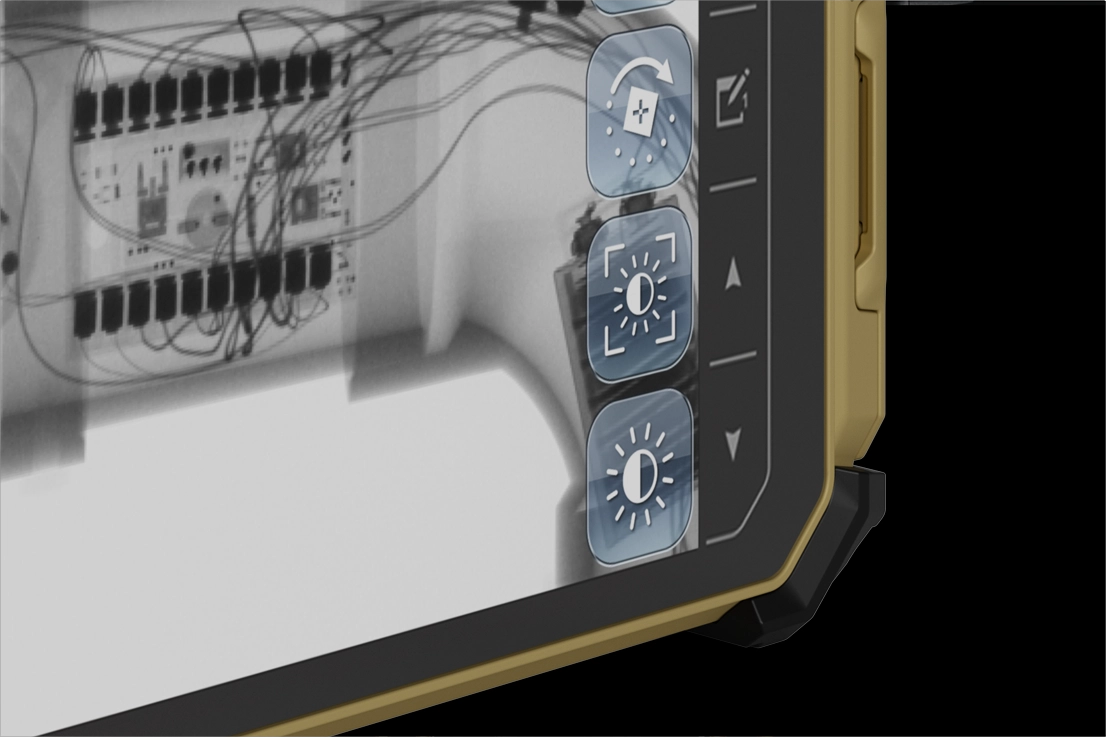

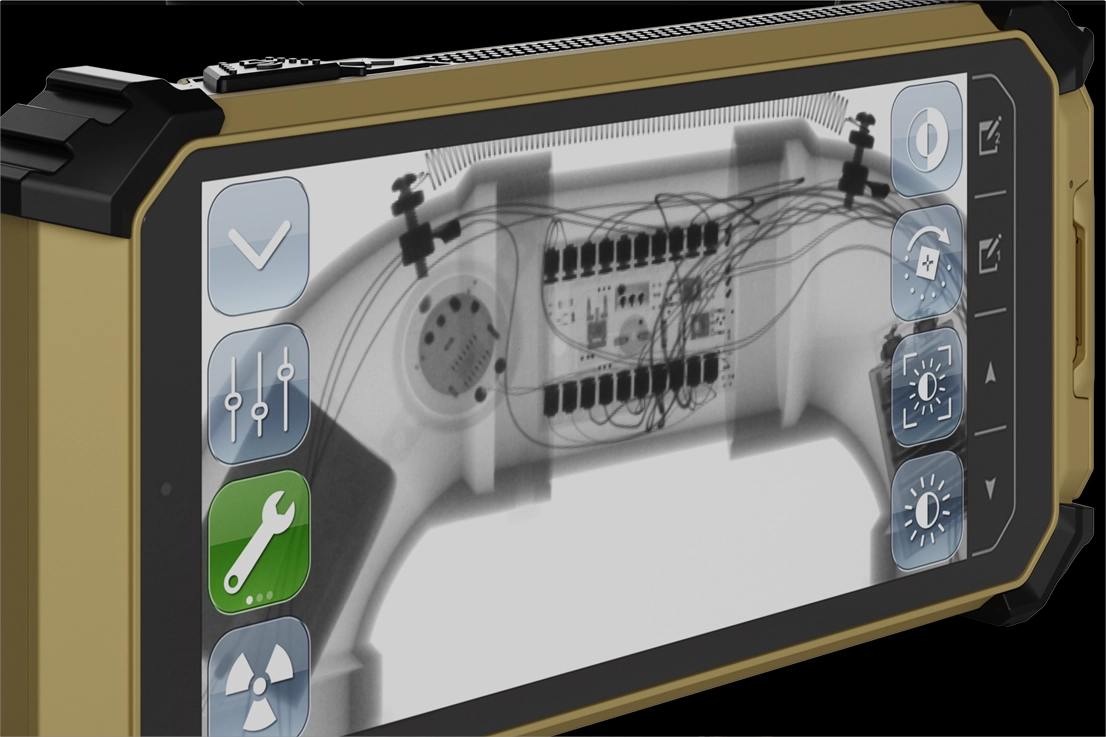

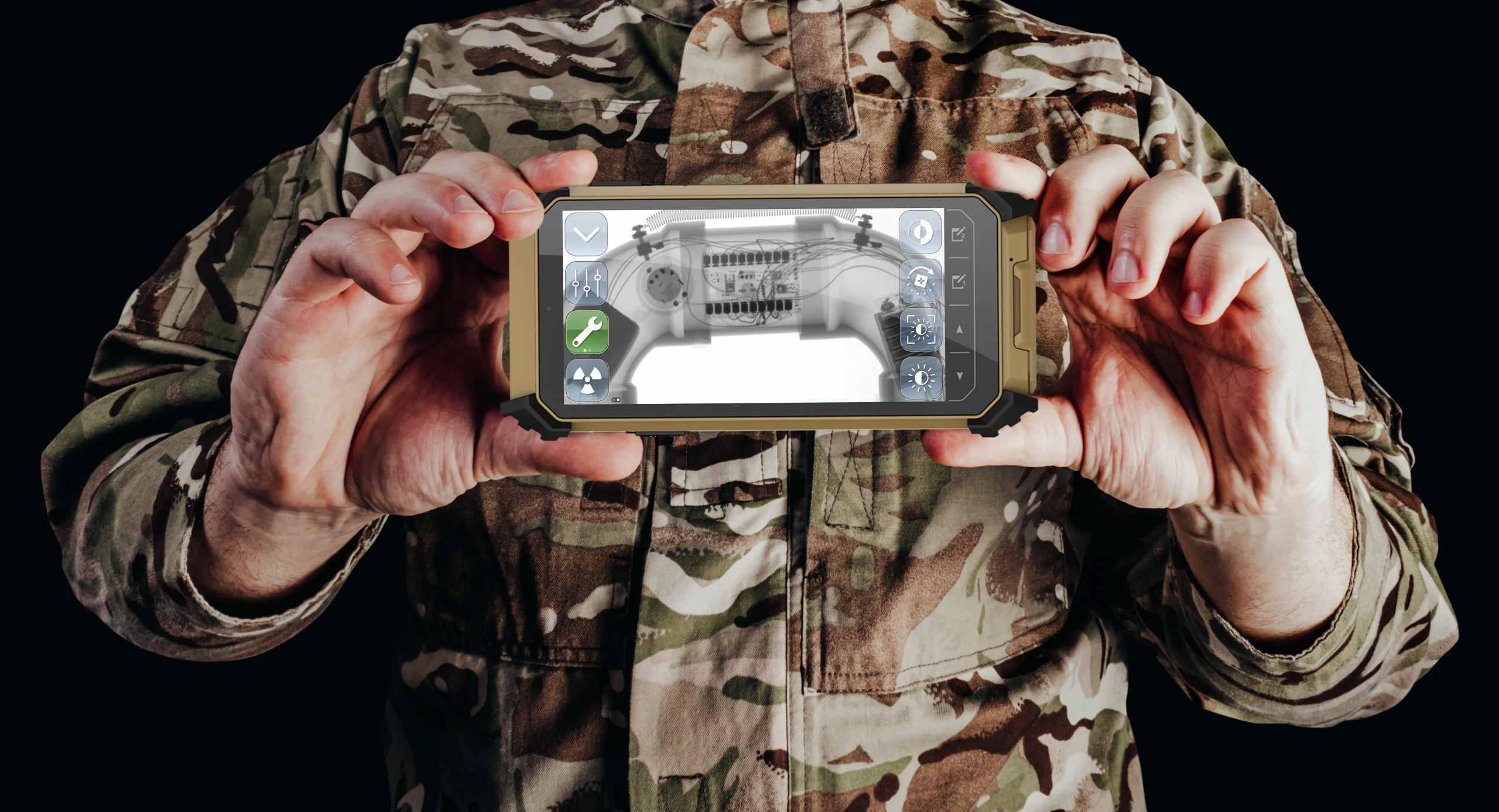

  • Intuitive Interface with Thumb Operated Controls
  • Handheld Form Factor
  • Complete Source Integration (5pin and 7pin versions) with Automated Adjustments
  • Quick Set and Shoot Workflow
  • Chest Mount Compatible
  • Complete set of Image Tools with Advanced Multi-Frequency Processing Tools

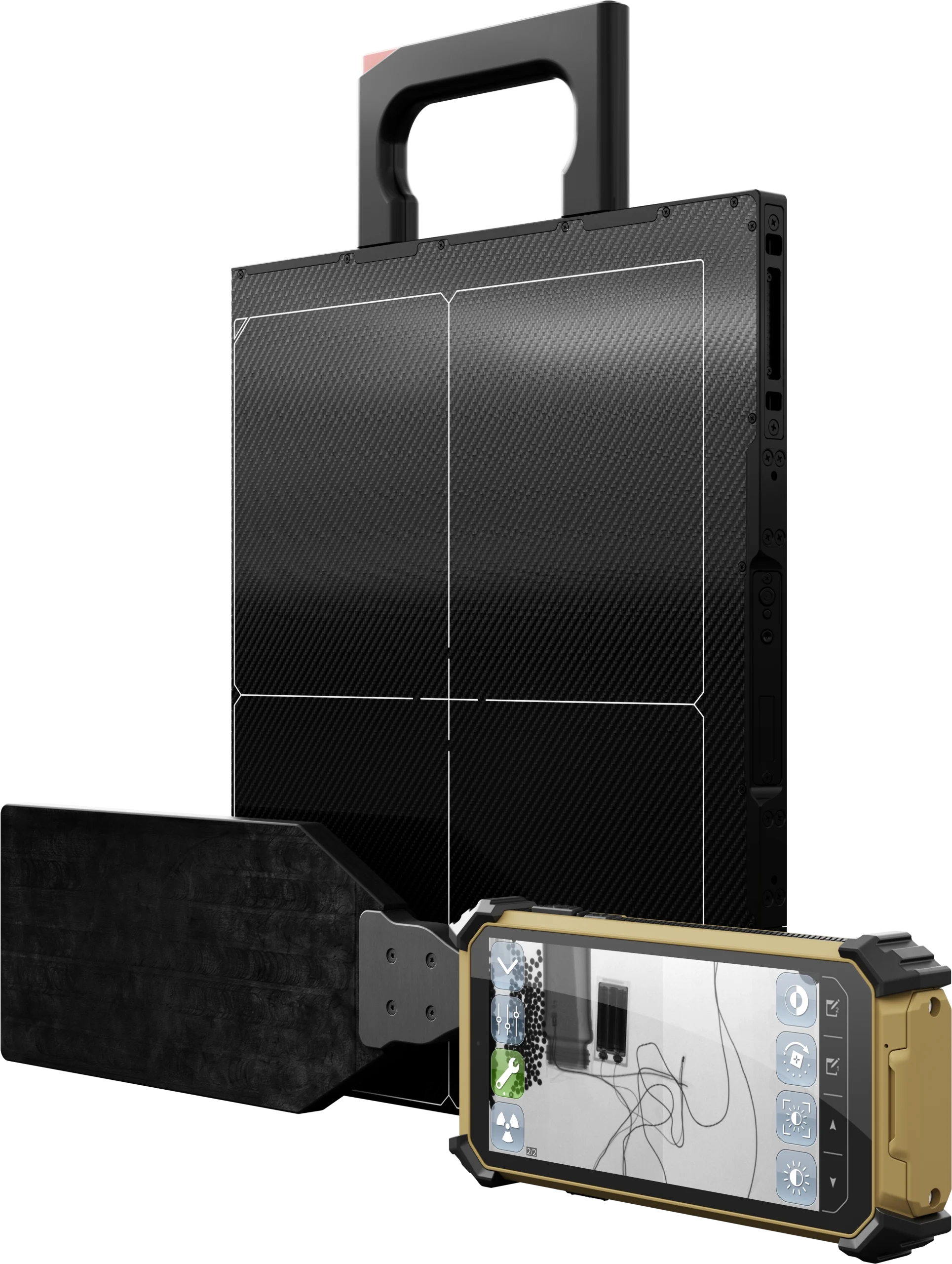

  • Multi- Detector Capable
  • Full XTK Integration

4” x 6” Detector Specs:

  • Pixel Pitch . . . . . . . . . . . . . . . . . . . . . . 100 micron
  • Image Size . . . . . . . . . . . . . . . . . . . . . 4” x 6” (22.9cm x 10.7cm)
  • Weight . . . . . . . . . . . . . . . . . . . . . . . . . 0.8 kg
  • AED (Auto Exposure Control) . . . . 2-pulse AED
  • Dead Space Margin . . . . . . . . . . . . . <2.0mm on two sides (Bezel thickness)

10” x 12” Detector Specs:

  • Pixel Pitch . . . . . . . . . . . . . . . . . . . . . . 99 micron
  • Image Size . . . . . . . . . . . . . . . . . . . . . 10” x 12” (35.3cm x 43.0cm)
  • Offline Image Storage . . . . . . . . . . 200 Images
  • Weight . . . . . . . . . . . . . . . . . . . . . . . . . 1.7kg with batteries
  • Water/Dust Intrusion Rating . . . . IP 67
  • Batteries (2) . . . . . . . . . . . . . . . . . . . . 8h internal Lithium 3100 mAh
  • AED (Auto Exposure Control) . . . . Zero EMI Optical trigger
  • Dead Space Margin . . . . . . . . . . . . . 2.7mm on two sides(Bezel thickness)
